Hidden hinge JNF IN.05.061.B black 50/80 kg

Product technical description

Technical data

Hidden hinges JNF IN.05.061 are intended for internal doors without a margin.

The door can be rotated 180 degrees. Universal, non-directional. Maximum hinge load - 50 kg / 2 pcs

The minimum thickness of the sash is 30 mm. Hinges have protection from mounting foam.

The mounting screws are hidden by the decorative covers.

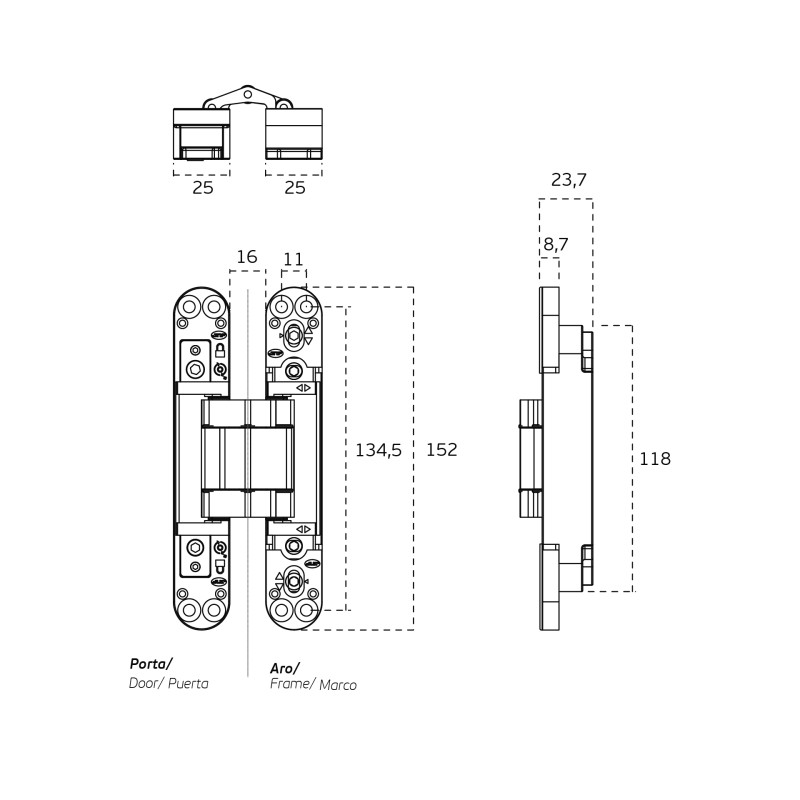

Hinges are made of zinc alloy ZAMAK and ABS thermoplastic, axles are made of stainless steel. Hinge height 134.5 mm, width 25 mm.

The hinges are adjustable in three directions (independently of each other).

Adjustment: vertical +/- 2 mm; horizontally +/-1 mm; to a depth of +/-1 mm.

The hinges are certified by the German IFT laboratory for 200,000 swing cycles.

The set includes:

* Hidden Hinge - 1 pc

* Decorative caps - 4 pcs

* Mounting screws - 4 pcs
